sim card writer

SimCARDTOOLS

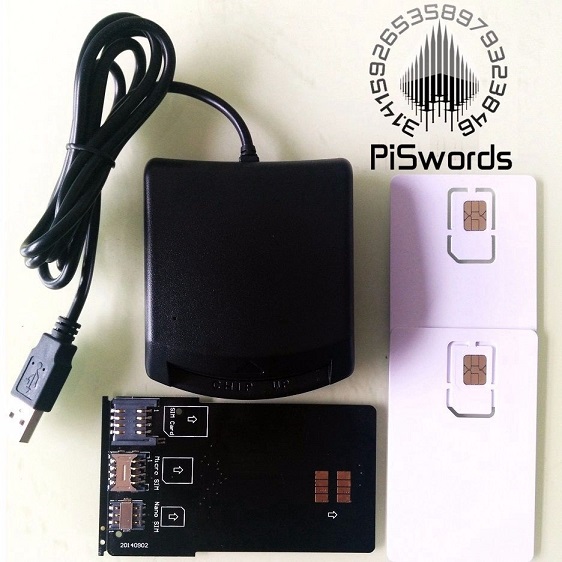

Blank GSM/WCDMA/LTE FDD 4G USIM SIM Card Tool Writer. with simcardtool v3.18 software

Category: SIM Card / Device
simcardtool programmer sim card tools Subscribe to our youtube channel

Main Features:
Support EMV Level 1 specification
Support USB 2.0 full speed
Based on ISO7816 implementation
Support PC Smart Card industry standard – PC/SC 2.0
Support Microsoft Smart Card for Windows
Meet Microsoft WHQL USB Smart Card Reader requirements
Meet US Federal Information Processing Standards (FIPS) Publication 201 requirements on smart card reader interoperability
Support single slot
Support T0, T1 protocol
Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
Support ISO7816 Class A, B and C (5V/3V/1.8V) card
Implemented as an USB full speed device with bulk transfer endpoint, Mass Storage endpoint
Built-in PLL for USB and Smart Card clocks requirement
Support EEPROM for USB descriptors customization (PID/VID/ iManufacturer/ iProduct/Serial Number), Direct Web Page Link, and accessing memory card module.
EEPROM programmable via USB interface
Support software update for memory card module
Support Direct Web Page Link via configuration in external EEPROM
Support short APDU and extended APDU
Compatible with Microsoft USB-CCID driver

PISWORDS SIMCARDTOOLS (Copyright: Piswords Co.,LTD Ver 3.1.18)

Pls be sure you know the ki and opc of origianl sim card.

write a blank usim card by pisowrds writer and piswords simcardtools software
very easy Operation steps
Step 1: install the driver of reader,insert the card(the chip side is up)

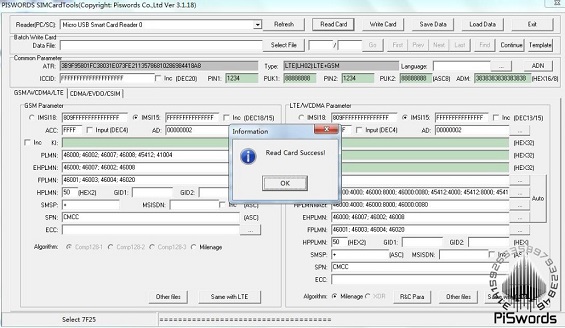

Step 2: open the software piswords simcardtools.exe, choose the reader in menu
Step 3: read the blank USIM Card , get "read card success" dialog
Step 4: close the dialog, input the data(ki,opc,imsi.....)
Step 5: after input the data, click "write card" menu, (pls be sure your data is right, or it will be error message.)

Subscribe to our youtube channel
