PLL-GPSDO
PLL-GPSDO GPS tame DISCiPLINED clock GPS Receiver 10M Sine Wave / 1PPS SQUARE WAVE GPSDO
Category: SDR
Specification:
- Mode:PLL-GPSDO
- POWER:DC11.7-12.9V/<=5W
- GPS ANT POWER:DC3.3V
- 1PPS OUTPUT:SQUARE WAVE,3.3Vpp,synchronize UTC time
- 10M OUTPUT :SINE WAVE,6dBm+-2dB
- RS232 OUTPUT:GPS NMEA SIGNAL,9600BPS
- ACCURACY:P-P:0.03Hz at 10MHz,FREQUENCY MEAN:0.0001Hz at 10M
- SIZE:WxHxD=138x25x65mm(INCLUDE BNC CONNECT)
- ACCESSORY:AC110-220-DC12V ADAPTER,5 m GPS ANT.

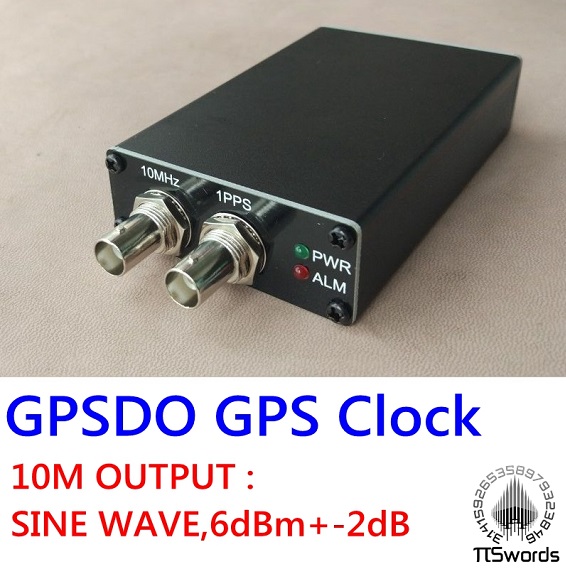

- Front panel:10MHz:10M sine wave output
- 1PPS:1PPS pulse output,rising edge synchronize UTC time
- PWR:power/GPS lock indicate,flash:GPS unlock;on:GPS lock;off:not power
- ALM:alarm led,on:frequency deviation accuary>0.1Hz,off：frequency deviation accuary<=0.1Hz
- Rear panel:DC-IN:12V power input，5.5-2.1 socket，inside is positive ,ouside is negative
- RS232:GPS NMEA output 9600BPS,compate RS232 signal
- ANT:GPS antenna input,outpu 3.3V,inside current limite
Package include:
- 1 x PLL-GPSDO GPS Tame Disciplined Clock
- 1 x Antenna
- 1 x Power supply
