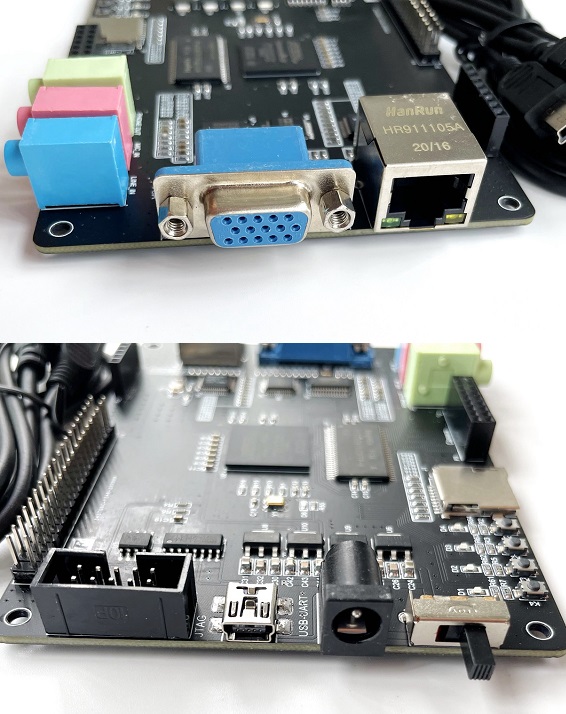

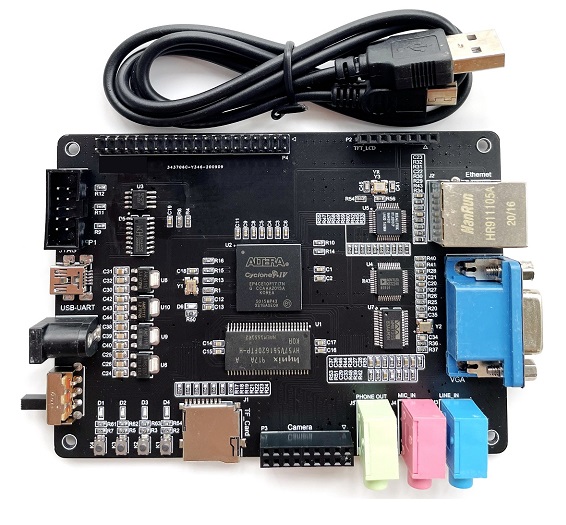

Altera FPGA EP4CE10F1717N Core Board
ALTERA FPGA Cyclone IV series EP4CE10F1717N Development Core board, Include USB Blaster programmer
Category: Development Board
Characteristics:
1. the main chip of ALTERA company's new FPGA Cyclone IV series EP4CE10F1717N
2. Onboard high-capacity EPCS4N serial configuration chip, supports JTAG/AS two download mode
3. Onboard HYNIX HY57V561620FTP-H SDRAM, support SOPC, NIOSII development
4. Onboard 50MHz active crystal, the master clock system stability
5. Using 1117-3.3V voltage regulator chip, to provide 3.3V voltage output
6. Using 1117-1.2V voltage regulator chip to provide FPGA core voltage
7. Using 1117-2.5V voltage regulator chip, to provide PLL voltage output
8. Using 1117-1.8V voltage regulator chip, to provide PLL voltage output
9. Using a large number of decoupling capacitors, decoupling design
10. 5V DC power supply socket and USB interface power supply socket, two kinds of power supply mode
11. 1 reset button, can also be used as a user input button
12. 1 self locking button power switch
13. 1 LED power indicator light
14. Out of all IO interface, universal 2.54mm spacing, can be easily extended
15. JTAG download interface to download the file is .SOF, the speed is fast, the usual use of this interface is recommended
Peripheral interface:
1. 4 independent keys
2. 4 LED diodes,
3. 4 digital tube
4. 4 dial switch
5. 1 Ethernet port
6. Camera interface
7. TF CARD port
8. 1*8 pin TFT LCD socket
9. VGA interface, for display experiment
10.AUDIO PORT(OUT,MIC-IN,LINE-IN)
